About

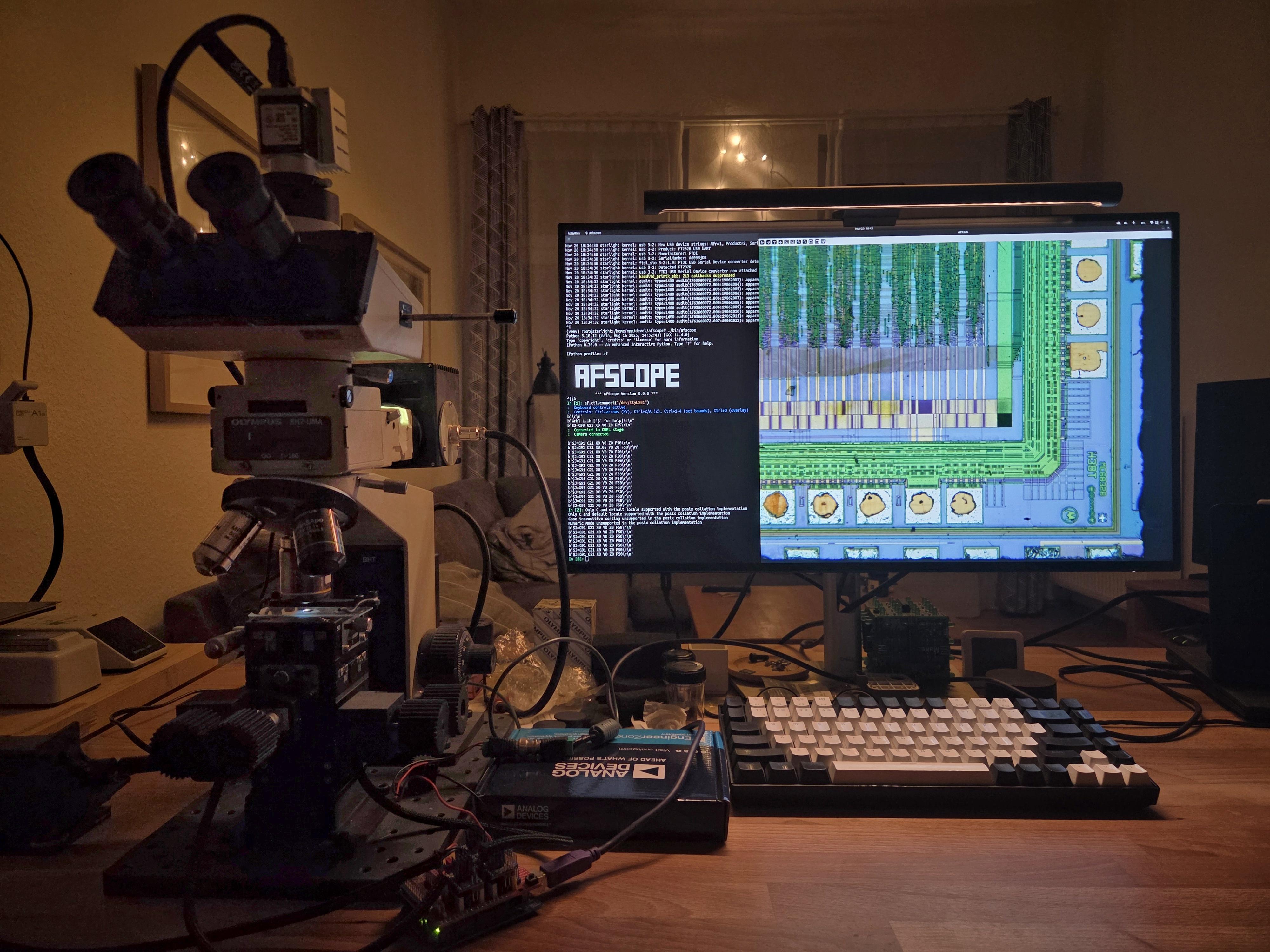

This is a collection of integrated circuit photography taken using my custom-built IC imaging system, aka afscope. You can also find my die-shots at siliconpr0n.org.
System Specifications
| Component | Details |
|---|---|
| Stand | Olympus BH2 BHT mounted on a 20cm x 30cm optical breadboard. |
| Epi-illumination | Olympus BH2 UMA with brightfield and darkfield cubes. Halogen lamp replaced with high power LED and passive cooling. |
| Head | Olympus BH2-TR30 trinocular observation tube with Olympus WHK10x/20 widefield eyepieces. |
| Camera | Basler aca2500 20gc. 2592 x 2048, 4.8um x 4.8um pixel size, 1” sensor with 15.9mm diagonal, global shutter. |
| Objectives | Olympus LMplanFL 5x/0.13 BD, Olympus UMplanFL 10x BD, Olympus UPlanSApo 20x / 0.75, Olympus MPlan N 50x/0.75. |
| Stage | XYZ precision linear stage + 2-axis precision goniometer stage. Custom built motorization based on the UC2-MicronStage, controlled with GRBL. |
| Software | Custom built control and imaging software. |
